Features

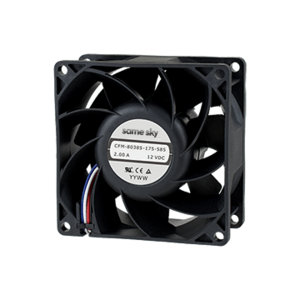

| 80 x 80 mm frame |
| Multiple speed options for different cooling needs |
| Auto restart protection standard on all models |
| Sleeve bearing construction |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Sleeve |
|
| Air Flow (CFM) | 49.42 |
|
| Rated Speed (RPM) | 4000 |
|
| Static Pressure (inH2O) | 0.37 |
|
| Noise (dBA) | 45 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 380 |
|
| Tachometer Signal | No |
|
| Rotation Detector | No |
|
| PWM Control Signal | No |
|
| Dimensions LxWxH (mm) | 80 x 80 x 37.6 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CFM-80S |
|
