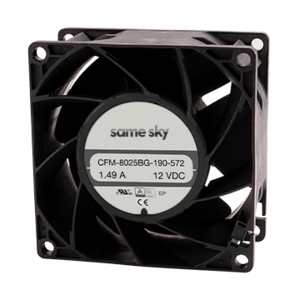

Features
| 80 x 80 mm frame |
| Multiple speed options for different cooling needs |
| Dual ball bearing construction |
| Tachometer signal available |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | Ball |
|
| Max Input Current (mA) | 1520 |
|
| Dimensions LxWxH (mm) | 80 x 80 x 25 |
|
| Series | CFM-80BG |
|
| Air Flow (CFM) | 93.14 |
|
| Noise (dBA) | 57.3 |
|
| PWM Control Signal | No |
|
| Rated Speed (RPM) | 9000 |
|
| Rated Voltage (Vdc) | 12 |
|
| Rotation Detector | No |
|
| Static Pressure (inH2O) | 1.38 |
|
| Tachometer Signal | Yes |
|
