CFM-8020BF-155-444-20

CFM-8020BF-155-444-20

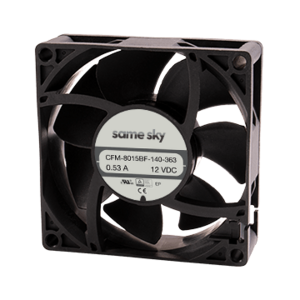

12 V, 0.45 A, 80 x 80 x 20 mm, Dc Fan, Tachometer Signal

Datasheet

Features

80 x 80 mm frame
Multiple speed options for different cooling needs
Dual ball bearing construction
Tachometer signal available

Specifications

Type Description
Select
Bearing Type Ball
Dimensions LxWxH (mm) 80 x 80 x 20
Operating Temp Range (°C) -10 ~ 70
Series CFM-80BF
Air Flow (CFM) 53.94
Max Input Current (mA) 450
Noise (dBA) 44.5
PWM Control Signal No
Rated Speed (RPM) 5500
Rated Voltage (Vdc) 12
Rotation Detector No
Static Pressure (inH2O) 0.35
Tachometer Signal Yes

Technical Docs

Datasheet 3D Model
