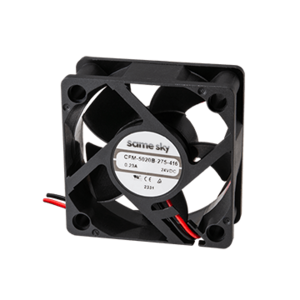

CFM-5020B-160-385-22
12 V, 0.20 A, 50 x 50 x 15 mm, Dc Fan, Tachometer Signal, PWM Control Signal
Features
| 50 x 50 mm frame |
| Multiple speed options for different cooling needs |
| Dual ball bearing construction |
| Tachometer signal available |
Specifications
| Type | Description | |
|---|---|---|
| Air Flow (CFM) | 16.18 |
|
| Bearing Type | Ball |
|
| Rated Speed (RPM) | 6000 |
|
| Static Pressure (inH2O) | 0.24 |
|
| Noise (dBA) | 38.5 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 200 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 50 x 50 x 20 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CFM-50B |
|
