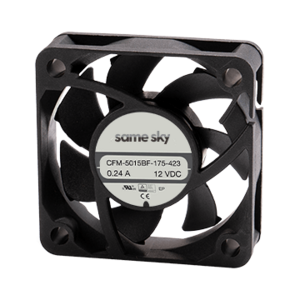

CFM-5015BF-160-374-22
12 V, 0.20 A, 50 x 50 x 15 mm, Dc Fan, Tachometer Signal, PWM Control Signal
Features
| 50 x 50 mm frame |
| Multiple speed options for different cooling needs |
| Dual ball bearing construction |
| Tachometer signal available |
Specifications
| Type | Description | |
|---|---|---|
| Air Flow (CFM) | 15.57 |
|
| Bearing Type | Ball |
|
| Rated Speed (RPM) | 6000 |
|
| Static Pressure (inH2O) | 0.2 |
|
| Noise (dBA) | 37.4 |
|
| Rated Voltage (Vdc) | 12 |
|
| Max Input Current (mA) | 200 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 50 x 50 x 15 |
|
| Series | CFM-50BF |
|
