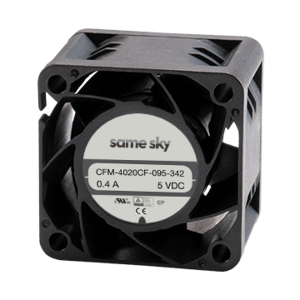

CFM-4020CF-095-342-22
5 V, 0.47 A, 40 x 40 x 20 mm, Dc Fan, Tachometer Signal, PWM Control Signal
The CFM-40CF series is a family of 40 x 40 mm dc axial fans featuring airflows up to 11.88 CFM and rated speeds from 3500 to 9500 RPM. Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, these axial fans bridge the cost-performance gap between conventional sleeve and ball bearing fan designs.
Features
| omniCOOL™ bearing system |
| 40 x 40 mm frame |
| Multiple speed options for different cooling needs |
| Tachometer signal available |
Specifications
| Type | Description | |
|---|---|---|
| Air Flow (CFM) | 11.88 |
|
| Bearing Type | omniCOOL™ |
|
| Rated Speed (RPM) | 9500 |
|
| Static Pressure (inH2O) | 0.41 |
|
| Noise (dBA) | 34.2 |
|
| Rated Voltage (Vdc) | 5 |
|
| Max Input Current (mA) | 470 |
|
| Tachometer Signal | Yes |
|
| Rotation Detector | No |
|
| PWM Control Signal | Yes |
|
| Dimensions LxWxH (mm) | 40 x 40 x 20 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CFM-40CF |
|
