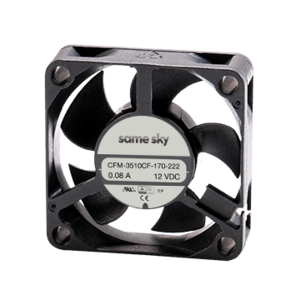

CFM-3510CF-170-222
12 V, 0.08 A, 35 x 35 x 10 mm, Dc Axial Fan
The CFM-35CF series is a family of 35 x 435 mm dc axial fans featuring airflows up to 5.90 CFM and rated speeds from 6000 to 9000 RPM. Thanks to the innovative omniCOOL™ system that provides improved performance and longer operational life, these axial fans bridge the cost-performance gap between conventional sleeve and ball bearing fan designs.
Features
| omniCOOL™ bearing system |
| 35 x 35 mm frame |
| Multiple speed options for different cooling needs |
| Tachometer signal available |
Specifications
| Type | Description | |
|---|---|---|
| Bearing Type | omniCOOL™ |
|
| Max Input Current (mA) | 80 |
|
| Dimensions LxWxH (mm) | 35 x 35 x 10 |
|
| Operating Temp Range (°C) | -10 ~ 70 |
|
| Series | CFM-35CF |
|
| Air Flow (CFM) | 4.59 |
|
| Noise (dBA) | 22.3 |
|
| PWM Control Signal | No |
|
| Rated Speed (RPM) | 7000 |
|
| Rated Voltage (Vdc) | 12 |
|
| Rotation Detector | No |
|
| Static Pressure (inH2O) | 0.1 |
|
| Tachometer Signal | No |
|
