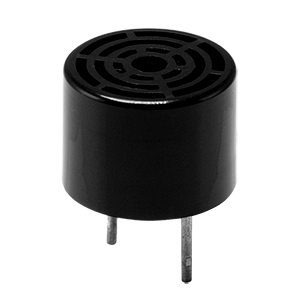

CUSP-T80-18-2400-TH

CUSP-T80-18-2400-TH
CUSP-T80-18-2400-TH Alternate View
CUSP-T80-18-2400-TH Alternate View

CUSP-T80-18-2400-TH

16.5 mm, 150 Vp-p, 80° Directivity, 0.2~18 m Range, 40 kHz, Through Hole, Ultrasonic Transmitter Sensor

Used to convert electrical signals into ultrasonic waves, the CUSP-T80-18-2400-TH is an analog ultrasonic transmitter featuring a distance range from 0.2 to 18 meters and a beam angle of 80°. Housed in a plastic case and through hole package, this ultrasonic transmitter further carries a 40 kHz rated frequency and an operating temperature range from -20 to 70°C.

Datasheet

Specifications

Type Description
Select
Mounting Style Through Hole
Technology Analog
Function Transmitter
Range (m) 0.2 ~ 18
Frequency (kHz) 40
Rated Voltage (Vp-p) 150
Directivity (°) 80
Operating Temp Range (°C) -20 ~ 70
Case Type Plastic
Enclosed No
Dimensions LxWxH (mm) 16.5 x 16.5 x 12
Dimensions LxWxH (in) 0.65 x 0.65 x 0.47
