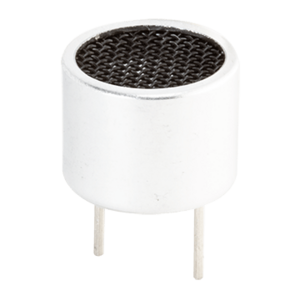

CUSA-T80-120-2200-TH
9.8 mm, 160 Vp-p, 80° Directivity, 0~12 M Range, 30.5 kHz, Through Hole, Ultrasonic Transmitter Sensor
Specifications
| Type | Description | |
|---|---|---|
| Dimensions LxWxH (mm) | 9.8 x 9.8 x 7 |
|
| Mounting Style | Through Hole |
|
| Function | Transmitter |
|
| Range (m) | 0 ~ 12 |
|
| Frequency (kHz) | 30.5 |
|
| Rated Voltage (Vp-p) | 160 |
|
| Directivity (°) | 80 |
|
| Operating Temp Range (°C) | -20 ~ 80 |
|
| Case Type | Aluminum |
|
| Dimensions LxWxH (in) | 0.36 x 0.36 x 0.28 |
|
| Enclosed | No |
|
| Technology | Analog |
|
