CUSA-T60-150-2400-TH
CUSA-T60-150-2400-TH
CUSA-T60-150-2400-TH Alternate View

CUSA-T60-150-2400-TH

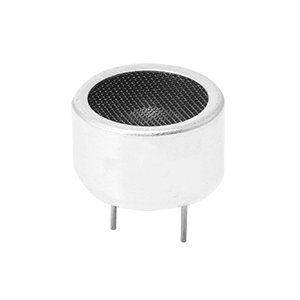

24 mm, 60 Vp-p, 60° Directivity, 0~15 m Range, 40 kHz, Through Hole, Ultrasonic Transmitter Sensor

Datasheet

Specifications

Type Description
Select
Dimensions LxWxH (in) 0.95 x 0.95 x 0.55
Dimensions LxWxH (mm) 24 x 24 x 14
Mounting Style Through Hole
Technology Analog
Function Transmitter
Range (m) 0 ~ 15
Frequency (kHz) 40
Rated Voltage (Vp-p) 60
Directivity (°) 60
Case Type Aluminum
Enclosed No
