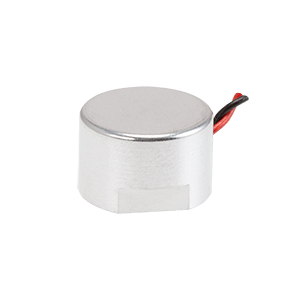

CUSA-TR65-065-2200-W68
14 mm, 150 Vp-p, 65° Directivity, 0.4 ~ 6.5 m Range, 40 kHz, Wire Leads, IP68, Ultrasonic Transceiver Sensor
Specifications
| Type | Description | |
|---|---|---|
| Dimensions LxWxH (in) | 0.55 x 0.55 x 0.35 |
|
| Dimensions LxWxH (mm) | 14 x 14 x 9 |
|
| Mounting Style | Wire Leads |
|
| Technology | Analog |
|
| Function | Transceiver |
|
| Range (m) | 0.4 ~ 6.5 |
|
| Frequency (kHz) | 40 |
|
| Rated Voltage (Vp-p) | 150 |
|
| Directivity (°) | 65 |
|
| Operating Temp Range (°C) | -40 ~ 80 |
|
| Case Type | Aluminum |
|
| Enclosed | Yes |
|
| IP Rating | IP68 |
|
