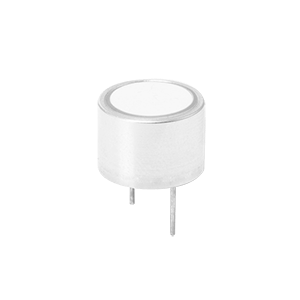

CUSA-TR071-01-400-TH67
13 mm, 400 Vp-p, 7° Directivity, 0.05 ~ 1 m Range, 300 kHz, Through Hole, IP67, Ultrasonic Transceiver Sensor
Specifications
| Type | Description | |
|---|---|---|
| Dimensions LxWxH (in) | 0.51 x 0.51 x 0.35 |
|
| Technology | Analog |
|
| Dimensions LxWxH (mm) | 13 x 13 x 9 |
|
| Function | Transceiver |
|
| Mounting Style | Through Hole |
|
| Range (m) | 0.05 ~ 1 |
|
| Frequency (kHz) | 300 |
|
| Rated Voltage (Vp-p) | 400 |
|
| Directivity (°) | 7 |
|
| Operating Temp Range (°C) | -40 ~ 80 |
|
| Case Type | Aluminum |
|
| Enclosed | Yes |
|
| IP Rating | IP67 |
|
