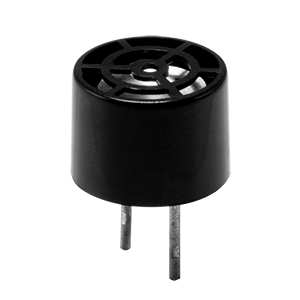

CUSP-R80-15-2500-TH
9.8 mm, 80 Vp-p, 80° Directivity, 0.2~15 m Range, 39 kHz, Through Hole, Ultrasonic Receiver Sensor
Used to convert ultrasonic waves into electrical signals, the CUSP-R80-15-2500-TH is an analog ultrasonic receiver featuring a distance range from 0.2 to 15 meters and a beam angle of 80°. Housed in a plastic case and through hole package, this ultrasonic receiver further carries a 39 kHz rated frequency and an operating temperature range from -20 to 80°C.
Specifications
| Type | Description | |
|---|---|---|
| Mounting Style | Through Hole |
|
| Technology | Analog |
|
| Function | Receiver |
|
| Range (m) | 0.2 ~ 15 |
|
| Frequency (kHz) | 39 |
|
| Rated Voltage (Vp-p) | 80 |
|
| Directivity (°) | 80 |
|
| Operating Temp Range (°C) | -20 ~ 80 |
|
| Case Type | Plastic |
|
| Enclosed | No |
|
| Dimensions LxWxH (mm) | 9.8 x 9.8 x 7 |
|
| Dimensions LxWxH (in) | 0.39 x 0.39 x 0.28 |
|
