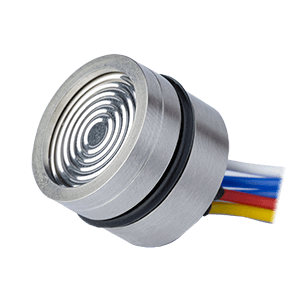

PS05-S600MP-5W
19 mm, 1.5 mA Excitation, 60 MPa, 5 Wires, Analog Output, Sealed Gauge Pressure Sensor
The PS05 series is a family of piezo-based pressure sensors offering absolute or sealed gauge pressure types and an operating pressure range from 0 kPa to 100 MPa. Housed in stainless steel construction with an O-ring seal, these pressure sensors are temperature compensated and feature analog outputs, 1.5 mA excitation ratings, and 5-wire terminations. With accuracy of ±0.2% and an operating temperature range from -40 to 125°C, the PS05 series is ideal for a variety of applications, including industrial, scientific, medical, white goods, and more.
Specifications
| Type | Description | |
|---|---|---|
| Output Type | Analog |
|
| Pressure Type | Sealed Gauge |
|
| Operating Pressure (kPa) | 60000 |
|
| Operating Pressure (PSI) | 8700 |
|
| Output Voltage (V) | 0.09 |
|
| Excitation | 1.5 |
|
| Accuracy | ±0.2% |
|
| Input Type | mA |
|
| Termination | Wire Leads |
|
| Dimensions LxWxH (mm) | 19 x 19 x 14 |
|
| Series | PS05 |
|
| Dimensions LxWxH (in) | 0.75 x 0.75 x 0.55 |
|
| Maximum Pressure (MPa) | 100 |
|
| Operating Temp. (°C) | -40 ~ 125 |
|
| Sensor Type | Pressure |
|
