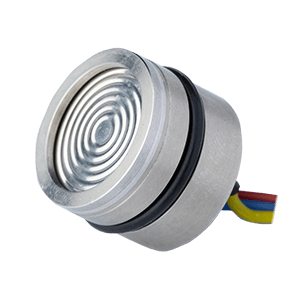

PS01-G600KP-3W
19 mm, 5 V Excitation, 600 kPa, 3 Wires, 0.5V~4.5V, Analog Output, Gauge Pressure Sensor
The PS01 series is a family of piezo-based pressure sensors offering absolute, gauge, and sealed gauge pressure types and an operating pressure range from 0 kPa to 2.5 MPa. Housed in stainless steel construction with an O-ring seal, these pressure sensors are temperature compensated and feature analog outputs, 5 V excitation ratings, and 3-wire terminations. With accuracy of ±0.5% and an operating temperature range from -40 to 105°C, the PS01 series is ideal for a variety of applications, including industrial, scientific, medical, white goods, and more.
Specifications
| Type | Description | |
|---|---|---|
| Output Type | Analog |
|
| Pressure Type | Gauge |
|
| Operating Pressure (kPa) | 600 |
|
| Operating Pressure (PSI) | 87 |
|
| Output Voltage (V) | 0.5~4.5 |
|
| Excitation | 5 |
|
| Accuracy | ±0.5% |
|
| Input Type | V |
|
| Termination | Wire Leads |
|
| Dimensions LxWxH (mm) | 19 x 19 x 14 |
|
| Series | PS01 |
|
| Dimensions LxWxH (in) | 0.75 x 0.75 x 0.55 |
|
| Maximum Pressure (MPa) | 2.5 |
|
| Operating Temp. (°C) | -40 ~ 105 |
|
| Sensor Type | Pressure |
|
