CSXX05U Series

CSXX05U Series
CSXX05U Series Alternate View

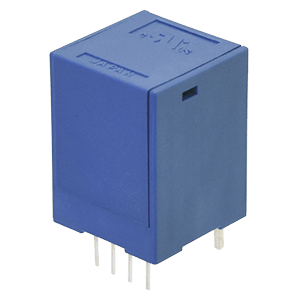

CS2005U

15 mm, 5 Vcc, Bipolar, Through Hole, 20 Rated Current, 0~40 Linearity Range, Open Loop Current Sensor

Datasheet

Specifications

Type Description
Select
Polarization Unipolar
Rated Current (A) 20
Linearity Range (A) 0~40
Supply Voltage (V) 5
Accuracy ±4.2%
Output Voltage @ +Rated Current (V) 2.3
Response Time (µs) 7
Current Supply Max (mA) 25
Frequency (kHz) 0~40
Number of Channels Single
Dimensions LxWxH (mm) 15 x 15 x 20
Series CSXX05U
Dimensions LxWxH (in) 0.59 x 0.59 x 0.79
Mounting Style Through Hole
Operating Temp Range (°C) -10 ~ 75
