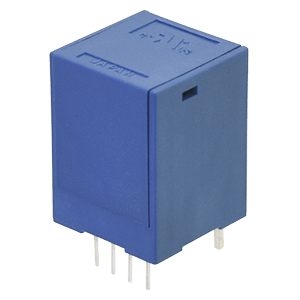

CS05150B
15 mm, ±15 Vcc, Bipolar, Through Hole, ±5 Rated Current, -15~15 Linearity Range, Open Loop Current Sensor
Specifications
| Type | Description | |
|---|---|---|
| Polarization | Bipolar |
|
| Rated Current (A) | ±5 |
|
| Linearity Range (A) | -15~15 |
|
| Supply Voltage (V) | ±15 |
|
| Accuracy | ±2.4% |
|
| Output Voltage @ +Rated Current (V) | 4 |
|
| Output Voltage @ -Rated Current (V) | -4 |
|
| Response Time (µs) | 3 |
|
| Current Supply Max (mA) | 25 |
|
| Frequency (kHz) | 0~40 |
|
| Number of Channels | Single |
|
| Dimensions LxWxH (mm) | 15 x 15 x 20 |
|
| Series | CSXX150B |
|
| Dimensions LxWxH (in) | 0.59 x 0.59 x 0.79 |
|
| Mounting Style | Through Hole |
|
| Operating Temp Range (°C) | -10 ~ 75 |
|
