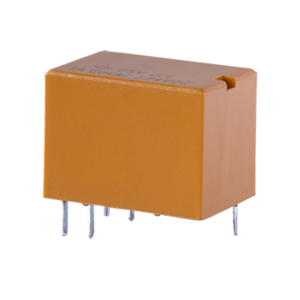

SR7-24V-200-1C
15.6 x 10.6 x 11.8 mm, 24 V, 1 A, SPDT (1 Form C), Through Hole, Signal Relay
Specifications
| Type | Description | |
|---|---|---|
| Coil Voltage (V) | 24 |
|
| Nominal Coil Power (mW) | 200 |
|
| Contact Form | SPDT (1 Form C) |
|
| Contact Rating | 120 |
|
| Contact Rating VDC @ 1 A | 24 |
|
| Max Switching Voltage (VAC) | 220 |
|
| Max Switching Voltage (VDC) | 30 |
|
| Max Switching Current (A) | 3 |
|
| Series | SR7 |
|
| Operating Temp Range (°C) | -25 ~ 70 |
|
| Dimensions LxWxH (mm) | 15.6 x 10.6 x 11.8 |
|
| Contact Material | AuAg Overlay |
|
| Contact Resistance (mΩ) | 50 |
|
| Dimensions LxWxH (in) | 0.61 x 0.42 x 0.46 |
|
| Mounting Style | Through Hole |
|
| Relay Type | Signal |
|
| Termination | Pc Pins |
|
