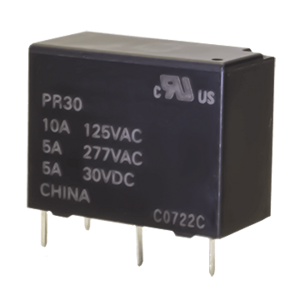

PR30-9V-450-1A-E
20.5 x 10.2 x 15.3 mm, 9 V, 10 A, SPST (1 Form A), Epoxy Sealed, Power Relay
Specifications
| Type | Description | |
|---|---|---|
| Relay Type | Power |
|
| Coil Voltage (V) | 9 |
|
| Nominal Coil Power (mW) | 450 |
|
| Contact Form | SPST (1 Form A) |
|
| Contact Rating | 5 A @ 250 VAC/30 VDC |
|
| Contact Resistance (mΩ) | 100 |
|
| Max Switching Voltage (VAC) | 250 |
|
| Max Switching Voltage (VDC) | 30 |
|
| Max Switching Current (A) | 10 |
|
| Seal Rating | Fully |
|
| Coil Insulation Class | B |
|
| Mounting Style | Through Hole |
|
| Termination | Pc Pins |
|
| Contact Material | AgSnO² (Silver Tin Oxide) |
|
| Dimensions LxWxH (mm) | 20.5 x 10.2 x 15.3 |
|
| Series | PR30 |
|
