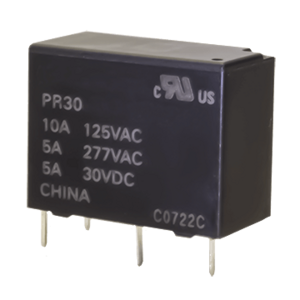

PR30-12V-450-1C-E
20.5 x 10.2 x 15.3 mm, 12 V, 10 A, SPDT ( 1 Form C), Epoxy Sealed, Power Relay
Specifications
Type | Description | |
---|---|---|
Relay Type | Power |
|
Coil Voltage (V) | 12 |
|
Nominal Coil Power (mW) | 450 |
|
Contact Form | SPST (1 Form A) |
|
Contact Rating | 5 A @ 250 VAC/30 VDC |
|
Contact Resistance (mΩ) | 100 |
|
Max Switching Voltage (VAC) | 250 |
|
Max Switching Voltage (VDC) | 30 |
|
Max Switching Current (A) | 10 |
|
Seal Rating | Fully |
|
Coil Insulation Class | B |
|
Mounting Style | Through Hole |
|
Termination | Pc Pins |
|
Contact Material | AgSnO² (Silver Tin Oxide) |
|
Dimensions LxWxH (mm) | 20.5 x 10.2 x 15.3 |
|
Series | PR30 |
|
