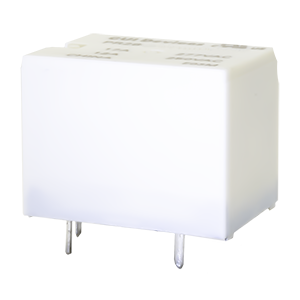

PR28-48V-360-1A-F

PR28-48V-360-1A-F
PR28-48V-360-1A-F Alternate View

PR28-48V-360-1A

22 x 16 x 16.6 mm, 48 V, 16 A, SPST (1 Form A), Class F, Power Relay

Datasheet

Specifications

Type Description
Select
Relay Type Power
Coil Voltage (V) 48
Nominal Coil Power (mW) 360
Contact Form SPST (1 Form A)
Contact Rating 16 A @ 250 VAC/30 VDC
Contact Resistance (mΩ) 100
Max Switching Voltage (VAC) 277
Max Switching Voltage (VDC) 30
Max Switching Current (A) 20
Seal Rating Fully
Coil Insulation Class F
Mounting Style Through Hole
Termination Pc Pins
Contact Material AgSnO² (Silver Tin Oxide)
Dimensions LxWxH (mm) 22 x 16 x 16.6
Series PR28
