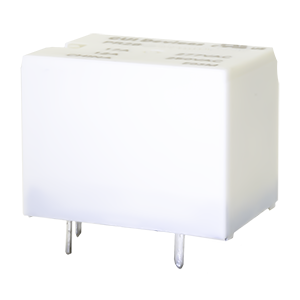

PR28-3V-360-1A-E
22 x 16 x 16.6 mm, 3 V, 16 A, SPST (1 Form A), Epoxy Sealed, Class F, Power Relay
Specifications
| Type | Description | |
|---|---|---|
| Relay Type | Power |
|
| Coil Voltage (V) | 3 |
|
| Nominal Coil Power (mW) | 360 |
|
| Contact Form | SPST (1 Form A) |
|
| Contact Rating | 16 A @ 250 VAC/30 VDC |
|
| Contact Resistance (mΩ) | 100 |
|
| Max Switching Voltage (VAC) | 277 |
|
| Max Switching Voltage (VDC) | 30 |
|
| Max Switching Current (A) | 20 |
|
| Seal Rating | Flux |
|
| Coil Insulation Class | F |
|
| Mounting Style | Through Hole |
|
| Termination | Pc Pins |
|
| Contact Material | AgSnO² (Silver Tin Oxide) |
|
| Dimensions LxWxH (mm) | 22 x 16 x 16.6 |
|
| Series | PR28 |
|
