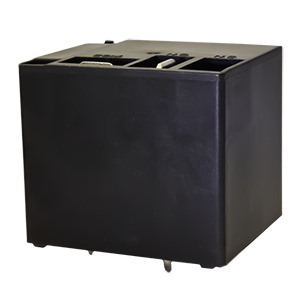

PR27-5V-S-900-1C-EF
32.23 x 27.4 x 27.92 mm, 5 V, 40 A, SPDT (1 Form C), Epoxy Sealed, Class F, Power Relay
Specifications
| Type | Description | |
|---|---|---|
| Relay Type | Power |
|
| Coil Voltage (V) | 5 |
|
| Nominal Coil Power (mW) | 900 |
|
| Contact Form | SPDT (1 Form C) |
|
| Contact Rating | 40 A @ 250 VAC/30 VDC |
|
| Contact Resistance (mΩ) | 50 |
|
| Max Switching Voltage (VAC) | 300 |
|
| Max Switching Voltage (VDC) | 30 |
|
| Max Switching Current (A) | 40 |
|
| Seal Rating | Flux |
|
| Coil Insulation Class | F |
|
| Mounting Style | Through Hole |
|
| Termination | Pc Pins |
|
| Contact Material | AgSnO² (Silver Tin Oxide) |
|
| Dimensions LxWxH (mm) | 32.23 x 27.4 x 27.92 |
|
| Operating Temp Range (°C) | -55 ~ 105 |
|
| Series | PR27 |
|
