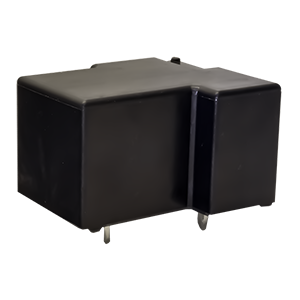

PR26-6V-S-900-1A-E
31.8 x 26.9 x 19.1 mm, 6 V, 40 A, SPST (1 Form A), Epoxy Sealed, Power Relay
Specifications
Type | Description | |
---|---|---|
Relay Type | Power |
|
Coil Voltage (V) | 6 |
|
Nominal Coil Power (mW) | 900 |
|
Contact Form | SPST (1 Form A) |
|
Contact Rating | 30 A @ 125 VAC/30 VDC |
|
Contact Resistance (mΩ) | 50 |
|
Max Switching Voltage (VAC) | 300 |
|
Max Switching Voltage (VDC) | 30 |
|
Max Switching Current (A) | 40 |
|
Seal Rating | Fully |
|
Coil Insulation Class | B |
|
Mounting Style | Through Hole |
|
Termination | Pc Pins |
|
Contact Material | AgSnO² (Silver Tin Oxide) |
|
Dimensions LxWxH (mm) | 31.8 x 26.9 x 19.1 |
|
Series | PR26 |
|
