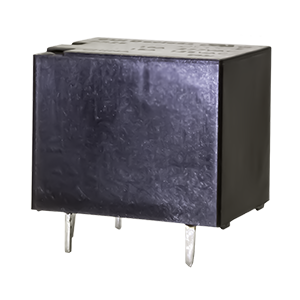

PR25-5V-S-360-1A-F
19 x 15.3 x 15.7 mm, 5 V, 15 A, SPST (SPST (1 Form A)), Class F, Power Relay
Specifications
| Type | Description | |
|---|---|---|
| Relay Type | Power |
|
| Coil Voltage (V) | 5 |
|
| Nominal Coil Power (mW) | 360 |
|
| Contact Form | SPST (1 Form A) |
|
| Contact Rating | 10 A @ 277 VAC/30 VDC |
|
| Contact Resistance (mΩ) | 100 |
|
| Max Switching Voltage (VAC) | 300 |
|
| Max Switching Voltage (VDC) | 30 |
|
| Max Switching Current (A) | 15 |
|
| Seal Rating | Flux |
|
| Coil Insulation Class | F |
|
| Mounting Style | Through Hole |
|
| Termination | Pc Pins |
|
| Contact Material | AgSnO² (Silver Tin Oxide) |
|
| Dimensions LxWxH (mm) | 19 x 15.3 x 15.7 |
|
| Series | PR25 |
|
