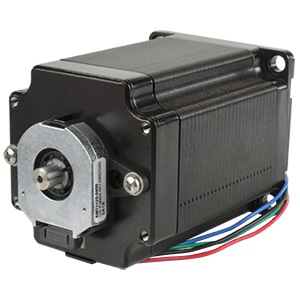

NEMA23-17-01PD-AMT112S
1.74 in Length, 85 oz-in Holding Torque, 2.1 A Current/Phase
Combining a compact NEMA 23 stepper motor with Same Sky’s AMT11 incremental encoder, the NEMA23-AMT112S series is a highly reliable motor and motion control feedback solution in one convenient package. The series features up to 270 oz-in (1.90 N-m) of holding torque, incremental resolutions up to 4096 PPR, and a digitally set zero position. The encoder is fully programmable via Same Sky’s AMT Viewpoint™ software without having to remove the encoder from the motor and in combination with the motor, it provides closed-loop feedback when paired with a controller for a complete servo system.
Specifications
| Type | Description | |
|---|---|---|
| Frame Size | NEMA 23 |
|
| Max Holding Torque (oz-in) | 85 |
|
| Shaft Ø (mm) | 6.35 |
|
| Current/Phase (A) | 2.8 |
|
| Resistance/Phase (Ω±10%) | 0.7 |
|
| Inductance/Phase (mH±20%) | 1.15 |
|
| Max Optimal Speed (RPS) | 11 |
|
| Length (in) | 1.74 |
|
| Series | NEMA23-AMT112S |
|
| Rated Voltage (Vdc) | 24 ~ 80 |
|
| Step Angle (°) | 1.8 |
|
