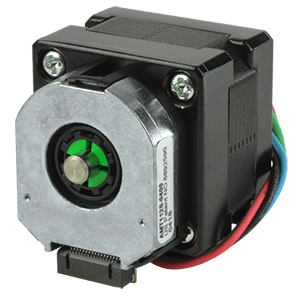

NEMA14-10-04D-AMT112S

1.02 in Length, 7.5 oz-in Holding Torque, 0.45 A Current/Phase

Combining a compact NEMA 14 stepper motor with Same Sky’s AMT11 incremental encoder, the NEMA14-AMT112S series is a highly reliable motor and motion control feedback solution in one convenient package. The series features up to 7.5 oz-in (0.052 N-m) of holding torque, incremental resolutions up to 4096 PPR, and a digitally set zero position. The encoder is fully programmable via Same Sky’s AMT Viewpoint™ software without having to remove the encoder from the motor and in combination with the motor, it provides closed-loop feedback when paired with a controller for a complete servo system.

Datasheet

Specifications

Type Description
Select
Frame Size NEMA 14
Max Holding Torque (oz-in) 7.5
Shaft Ø (mm) 5
Current/Phase (A) 0.45
Operating Temp Range (°C) -20 ~ 50
Resistance/Phase (Ω±10%) 3.8
Inductance/Phase (mH±20%) 2.32
Max Optimal Speed (RPS) 30
Length (in) 1.02
Series NEMA14-AMT112S
Rated Voltage (Vdc) 24 ~ 48
Step Angle (°) 1.8
