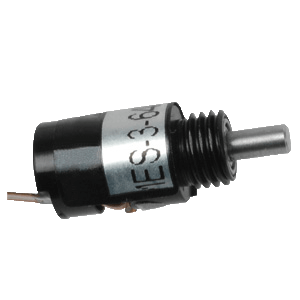

MES3 Series

MES3 Series

5 mm, 64 ~ 1024 PPR, Square Wave, Incremental, Optical Shaft Encoder

Specifications

Type Description
Select
Input Voltage (Vdc) 4.5 ~ 5.5
Shaft Length (mm) 2.5
Series MES3
Shaft (Bore) Ø (mm) 1.5
Operating Temp. (°C) 0 ~ 60
Speed, Max. (RPM) 6000

Technical Docs

Other Resources

Customize Your Part

Configured Part Number
