EC251 E or F Series

EC251 E or F Series

This product has been discontinued. If you have any questions or concerns, please review the EOL notice.

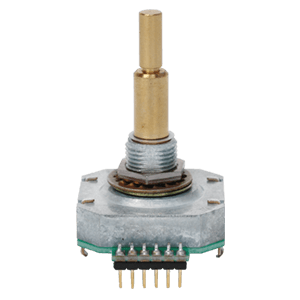

25 mm, 50 PPR, Metal Shaft, Sleeve Bearing, Push Switch, Single or Dual Concentric Shaft, Optical Panel Mount Encoder

Datasheet

Specifications

Type Description
Select
Input Voltage (Vdc) 2.97 ~ 3.63
Shaft Length (mm) 20, 30
Series EC251
Operating Temp. (°C) 0 ~ 60
Speed, Max. (RPM) 120

Technical Docs

Datasheet

Other Resources

Customize Your Part

Configured Part Number

Buy from Same Sky

Loading...

Shop our distributors
