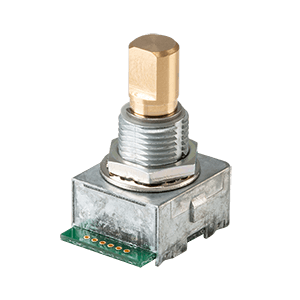

C14D32P-A3
15 mm, 32 PPR, 6.35 mm Metal Shaft, Push Switch, 4.75 ~ 5.25 Vdc, 0.5 mm Holes Termination, 2-Bit Optical Panel Mount Incremental Encoder
The C14 series is a family of compact 2-bit quadrature optical panel mount encoders with resolutions of 16 or 32 PPR. The body and shaft of the C14 feature metal construction, creating a rugged package that can be further protected with an optional IP65 rating. Plastic shaft options are also offered for use in medical applications. Available in over 40 configurations with multiple termination types, the C14 series is built to last with a rotational and push button life of 1,000,000 cycles.
