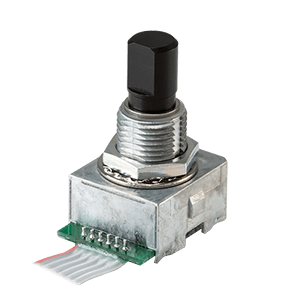

15 mm, 16 PPR, 6.35 mm Plastic Shaft, Push Switch, 4.75 ~ 5.25 Vdc, 130 mm Cable w/Connector Termination, 2-Bit Optical Panel Mount Incremental Encoder

The C14 series is a family of compact 2-bit quadrature optical panel mount encoders with resolutions of 16 or 32 PPR. The body and shaft of the C14 feature metal construction, creating a rugged package that can be further protected with an optional IP65 rating. Plastic shaft options are also offered for use in medical applications. Available in over 40 configurations with multiple termination types, the C14 series is built to last with a rotational and push button life of 1,000,000 cycles.

Datasheet

Features

2-bit quadrature output
Compact
Rugged metal design
1 million cycle life
Multiple termination options

Options

Custom 3.175 mm shaft bore diameter
Custom 22 mm shaft length

Specifications

Type Description
Select
Resolution (PPR) 16
Input Voltage (Vdc) 4.75 ~ 5.25
Shaft Length (mm) 17.5
Shaft (Bore) Ø (mm) 6, 6.35
Operating Temp. (°C) -10 ~ 70
Detent Yes
Orientation Vertical
Push Switch Yes
Termination Cable
Series C14

Technical Docs

Datasheet 3D Model

Other Resources

Buy from Same Sky
