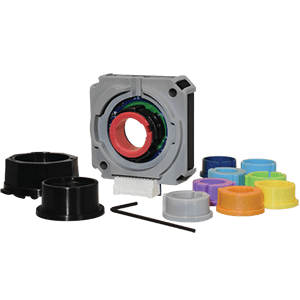

AMT13-V Kit

AMT13-V Kit
Sleeves (9~15.87 mm)
AMT13-V Kit Tools

AMT132S-V

Straight (Axial) Orientation, CMOS Voltage

The AMT13-V all-in-one incremental encoder kit offers up to 176 configurations in one package. The kit supports 9 shaft sizes ranging from 9 mm to 15.87 mm (5/8 in) and includes three simple mounting tools. Coupled with selectable resolution range of 48 to 4096 PPR via Same Sky's AMT Viewpoint GUI, the AMT13-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.

Datasheet

Features

22 programmable resolutions up to 4096 PPR
Resilient to dust, dirt and oil
Low power consumption
-40 to +125°C temperature range
9 different shaft sizes from 9 mm to 15.87 mm
176 encoders in one package
Multiple mounting options
High accuracy
Simple assembly

Specifications

Type Description
Select
Input Voltage (Vdc) 4.5 ~ 5.5
Operating Temp. (°C) -40 ~ 125
Speed, Max. (RPM) 2500, 4000, 8000
Output Type CMOS Voltage
Series AMT13
Orientation Radial

Technical Docs

Datasheet
