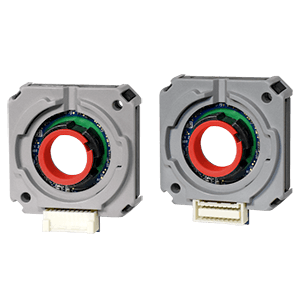

AMT13 Series

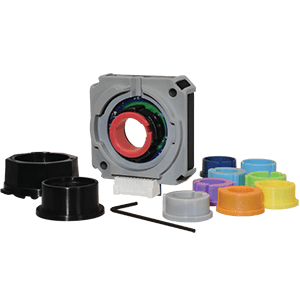

AMT13 Series Shown with Alignment Tool
AMT13-V Kit

AMT13 Series

42 mm, 48 ~ 4096 PPR, Incremental, Capacitive Modular Encoder

Same Sky's AMT13 series is a rugged, high accuracy incremental encoder offering 22 programmable resolutions from 48 to 4096 PPR. Thanks to its innovative capacitive platform, the series is not susceptible to contaminants such as dirt, dust, and oil that typically plague encoders in industrial environments. The AMT13's design also simplifies the assembly process, reducing the time-consuming tasks of mounting and alignment to mere seconds. Combined with an operating temperature range of -40°C to +125°C, high accuracy, a compact package, and low current draw, the AMT13 provides a compelling solution for a range of industrial, automation, robotics, and renewable energy applications.

Datasheet

Get the All-in-One Encoder Kit!


Over 150 encoders in one kit. A flexible platform for development and prototyping, available in distribution for immediate delivery.

LEARN MORE

Features

22 programmable resolutions up to 4096 PPR
Quadrature A, B, Z
Resilient to dust, dirt and oil
One Touch Zero™ set
Low power consumption
Compatible with AMT Viewpoint™ GUI
-40 to +125°C temperature range

Specifications

Type Description
Select
Input Voltage (Vdc) 4.5 ~ 5.5
Operating Temp. (°C) -40 ~ 125
Series AMT13
Speed, Max. (RPM) 2500, 4000, 8000

Technical Docs

Datasheet 3D Model

Customize Your Part

Configured Part Number
