AMT123S-V

AMT123S-V

22 mm, 96 ~ 4096 PPR, Axial Orientation, Incremental, Capacitive Modular Encoder

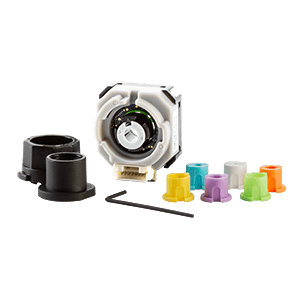

The AMT12-V all-in-one incremental encoder kit offers up to 144 configurations in one package. The kit supports 8 shaft sizes ranging from 1 mm to 6 mm and includes four simple mounting tools. Coupled with a selectable resolution range of 96 to 4096 PPR via Same Sky's AMT Viewpoint GUI, the AMT12-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.

Datasheet

Features

144 encoders in one package
16 programmable resolutions up to 4096 PPR
9 different shaft sizes from 1 mm to 6.35 mm
Resilient to dust, dirt and oil
Low current draw
Simple assembly
-40 to +125°C temperature range

Specifications

Type Description
Select
Input Voltage (Vdc) 4.5 ~ 5.5
Operating Temp. (°C) -40 ~ 125
Speed, Max. (RPM) 2500, 4000, 8000
Series AMT12
Orientation Axial
