AMT11A-V Kit

AMT11A3S-V

28 mm, 96 ~ 4096 PPR, Incremental, TTL Voltage Output, Axial Orientation, Capacitive Modular Encoder Kit

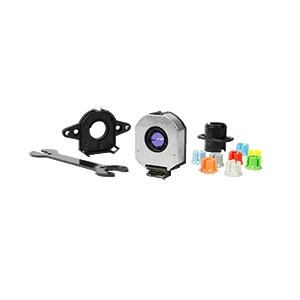

The AMT11A-V all-in-one incremental encoder kit offers up to 288 configurations in one package. The kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and two baseplates with multiple pre-drilled mounting hole patterns to mate with a wide range of motors. Coupled with an on-board DIP switch offering a selectable resolution range of 96 to 4096 PPR, the AMT11A-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.

Datasheet

Features

15 resolutions up to 4096 PPR
9 different shaft sizes from 2 mm to 8 mm
Multiple mounting options
High accuracy
Resilient to dust, dirt and oil
Low current draw
Simple assembly
-40 to +125°C temperature range
288 encoders in one package

Specifications

Type Description
Select
Output Type CMOS Voltage
Orientation Axial
Input Voltage (Vdc) 4.5 ~ 5.5
Shaft (Bore) Ø (mm) 2, 3, 3.175, 4, 4.76, 5, 6, 6.35, 8
Operating Temp. (°C) -40 ~ 125
Speed, Max. (RPM) 4000, 8000
Series AMT11A
