AMT11-V Kit

AMT11-V Kit
Standard and Wide Base
Sleeves (2~8 mm)
Tool A and C

AMT112S-V

28 mm, 48 ~ 4096 PPR, Incremental, TTL Voltage Output, Radial Orientation, Capacitive Modular Encoder Kit

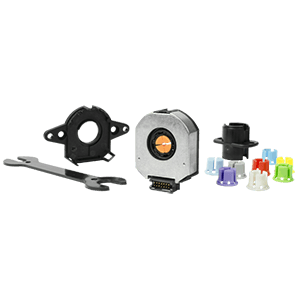

The AMT11-V all-in-one incremental encoder kit offers 396 configurations in one package. The kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and two baseplates with multiple pre-drilled mounting hole patterns to mate with a wide range of motors. Coupled with a selectable resolution range of 48 to 4096 PPR via Same Sky's AMT Viewpoint GUI, the AMT11-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.

Datasheet

Features

High accuracy
Resilient to dust, dirt and oil
Low current draw
Multiple mounting options
-40 to +125°C temperature range
22 programmable resolutions up to 4096 PPR
396 encoders in one package
Simple assembly
9 different shaft sizes from 2 mm to 8 mm

Specifications

Type Description
Select
Output Type CMOS Voltage
Orientation Radial
Input Voltage (Vdc) 4.5 ~ 5.5
Operating Temp. (°C) -40 ~ 125
Speed, Max. (RPM) 2500, 4000, 8000
Series AMT11
