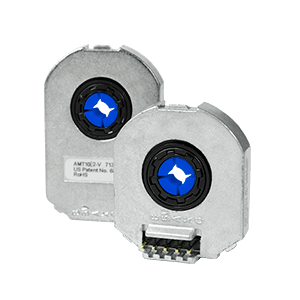

AMT10E Series

AMT10E Series

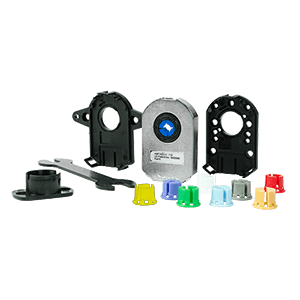

AMT10E-V Kit
AMT10E-V Kit Alternate View

AMT10E Series

28 mm, 120 ~ 5120 PPR, Incremental, Capacitive Modular Encoder

Same Sky's AMT10E series is a rugged, high accuracy incremental encoder offering 16 programmable resolutions from 120 to 5120 PPR. Thanks to its innovative capacitive platform, the series is not susceptible to contaminants such as dirt, dust, and oil that typically plague encoders in industrial environments. The AMT10E's design also simplifies the assembly process, reducing the time-consuming tasks of mounting and alignment to mere seconds. Combined with an operating temperature range of -40°C to +100°C, high accuracy, a compact package, and low current draw, the AMT10E provides a compelling solution for a range of industrial, automation, robotics, and renewable energy applications.

Datasheet

Get the All-in-One Encoder Kit!


Over 250 encoders in one kit. A flexible platform for development and prototyping, available in distribution for immediate delivery.

LEARN MORE

Features

High accuracy
Resilient to dust, dirt and oil
Compact design
Low current draw
Simple assembly
Quadrature A, B
-40 to +100°C temperature range

Specifications

Type Description
Select
Input Voltage (Vdc) 3.1 ~ 5.5
Operating Temp. (°C) -40 ~ 100
Speed, Max. (RPM) 3000, 6000
Series AMT10E

Technical Docs

Datasheet 3D Model
