AMT103-V

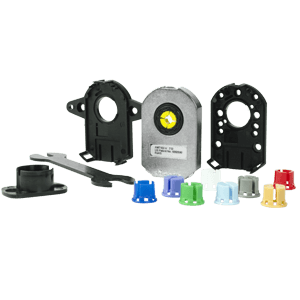

AMT103-V Kit
Sleeves (2~8 mm)
Tool A and B

AMT103-V

Right-Angle (Axial) Orientation

The AMT10-V all-in-one incremental encoder kit offers up to 288 configurations in one package. The kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and two baseplates with multiple pre-drilled mounting hole patterns to mate with a wide range of motors. Coupled with an on-board dip switch offering a selectable resolution range of 48 to 2048 PPR, the AMT10-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.

*AMT103-V kit only includes the standard baseplate

Datasheet

Features

High accuracy
Resilient to dust, dirt and oil
Low current draw
Simple assembly
16 programmable resolutions via on-board dip switch
-40 to +100°C temperature range
288 encoders in one package
Multiple mounting options
9 different shaft sizes from 2 mm to 8 mm

Specifications

Type Description
Select
Input Voltage (Vdc) 3.6 ~ 5.5
Operating Temp. (°C) -40 ~ 100
Speed, Max. (RPM) 15000, 7500
Output Type CMOS Voltage
Series AMT10
Orientation Axial

Technical Docs

Datasheet
