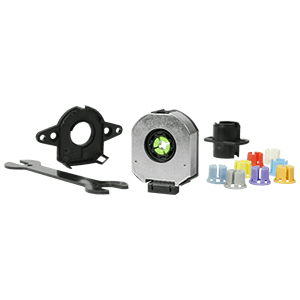

AMT31-V Kit

AMT31-V Kit
Standard and Wide Base
Sleeves (2~8 mm)
Tool A and C

AMT313S-V

28 mm, 48 ~ 4096 PPR, Commutation, TTL Voltage Output, Axial Orientation, Capacitive Modular Encoder Kit

The AMT31-V all-in-one incremental encoder kit offers 5,544 configurations in one package. The kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and two baseplates with multiple pre-drilled mounting hole patterns to mate with a wide range of motors. Coupled with the ability to set a range of parameters via Same Sky's AMT Viewpoint GUI, the AMT31-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.

Datasheet

Features

High accuracy
Resilient to dust, dirt and oil
Low current draw
-40 to +125°C temperature range
Simple assembly
5,544 encoders in one package
22 programmable resolutions up to 4096 PPR
Multiple mounting options
9 different shaft sizes from 2 mm to 8 mm

Specifications

Type Description
Select
Input Voltage (Vdc) 4.5 ~ 5.5
Output Type CMOS Voltage
Orientation Axial
Operating Temp. (°C) -40 ~ 125
Speed, Max. (RPM) 2500, 4000, 8000
Series AMT31
