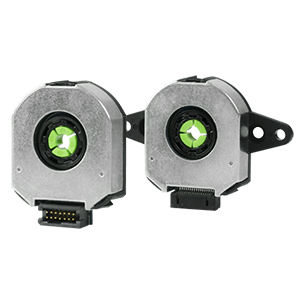

AMT31 Series

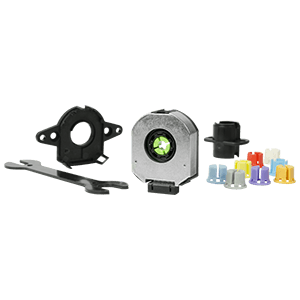

AMT31-V Kit

AMT31 Series

28 mm, 48 ~ 4096 PPR, Commutation, Capacitive Modular Encoder

Same Sky's AMT31 Series is a rugged, high accuracy commutation encoder that generates standard U/V/W communication signals for commutating brushless dc motors. Thanks to its innovative capacitive platform, the series is not susceptible to contaminants such as dirt, dust, and oil that typically plague encoders in industrial environments. The AMT31’s design also simplifies the assembly process, reducing the time-consuming tasks of mounting and alignment to mere seconds with the One Touch Zero™ feature. Combined with an operating temperature range of -40°C to +125°C, high accuracy, a compact package, and low current draw, the AMT31 provides a compelling solution for a range of industrial, automation, robotics, and renewable energy applications.

Datasheet

Get the All-in-One Encoder Kit!


Over 5,500 encoders in one kit. A flexible platform for development and prototyping, available in distribution for immediate delivery.

LEARN MORE

Features

Three phase U, V, W commutation signals
High accuracy
Resilient to dust, dirt and oil
Compact design
Low current draw
Modular locking hub design for simple assembly
Programmable incremental output
Digitally set zero position with AMT One Touch Zero™ module
-40 to +125°C temperature range
Compatible with AMT Viewpoint™ GUI

Specifications

Type Description
Select
Input Voltage (Vdc) 4.5 ~ 5.5
Operating Temp. (°C) -40 ~ 125
Speed, Max. (RPM) 2500, 4000, 8000
Series AMT31
