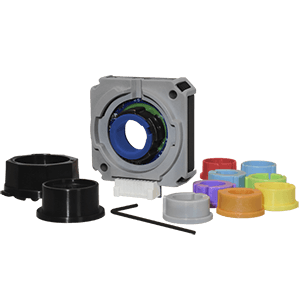

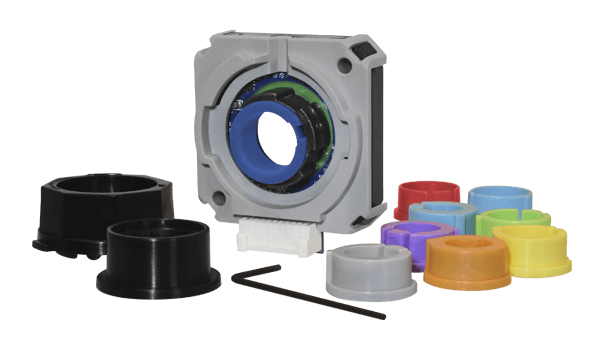

AMT33-V Kit

AMT33-V Kit
Sleeves (9~15.87 mm)
AMT33-V Kit Tools

AMT332S-V

Straight (Radial) Orientation, CMOS Voltage Output Signal

The AMT33-V all-in-one incremental encoder kit offers up to 2,464 configurations in one package. The kit supports 9 shaft sizes ranging from 9 mm to 15.87 mm (5/8 in) and includes three simple mounting tools. Coupled with the ability to set a range of parameters via Same Sky's AMT Viewpoint GUI, the AMT33-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.

Datasheet

Features

22 programmable resolutions up to 4096 PPR
Resilient to dust, dirt and oil
Low power consumption
-40 to +125°C temperature range
2,464 encoders in one package
9 different shaft sizes from 9 mm to 15.87 mm
Multiple mounting options
High accuracy
Simple assembly

Specifications

Type Description
Select
Input Voltage (Vdc) 4.5 ~ 5.5
Operating Temp. (°C) -40 ~ 125
Speed, Max. (RPM) 2500, 4000, 8000
Series AMT33
Orientation Radial
