AMT243B-V
Axial Orientation, 14-Bit Single-Turn Absolute Resolution

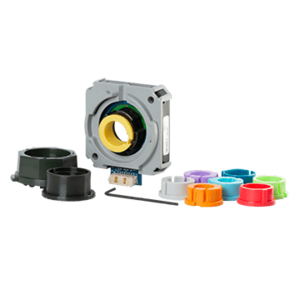

The AMT24-V all-in-one absolute encoder kit offers up to 18 configurations in one package. The kit supports 9 shaft sizes ranging from 9 mm to 15.875 mm (5/8 in) and includes three simple mounting tools. Coupled with the ability to set zero position via RS-485 command or Same Sky’s AMT Viewpoint GUI, the AMT24-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.
Specifications
| Type | Description | |
|---|---|---|
| Speed, Max. (RPM) | 4000, 8000 |
|
| Output Type | SPI |
|
| Input Voltage (Vdc) | 3.8 ~ 5.5 |
|
| Shaft (Bore) Ø (mm) | 10, 11, 12, 12.7, 13, 14, 15, 15.875, 9, 9.525 |
|
| Orientation | Axial |
|
| Absolute Resolution | 14-bit single-turn |
|
| Operating Temp. (°C) | -40 ~ 105 |
|
| IP Rating | No IP Rating |
|
| Series | AMT24 |
|
