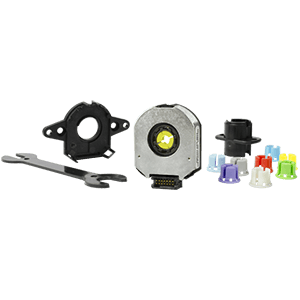

AMT20-V Kit

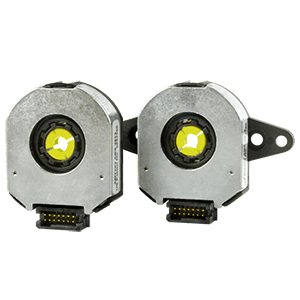

AMT20 Series

28 mm, 12 Bit, Single-Turn, Absolute, SPI Interface, Capacitive Modular Encoder

Same Sky's AMT20 series is a rugged, high accuracy absolute encoder outputting 12 bits of absolute position information with Serial Peripheral Interface (SPI) communication. Thanks to its innovative capacitive platform, the series is not susceptible to contaminants such as dirt, dust, and oil that typically plague encoders in industrial environments. The AMT20’s design also simplifies the assembly process, reducing the time consuming tasks of mounting and alignment to mere seconds with the One Touch Zero™ feature. Combined with an operating temperature range of -40°C to +125°C, high accuracy, a compact package, and low current draw, the AMT20 provides a compelling solution for a range of industrial, automation, robotics, and renewable energy applications.

Datasheet

Get the All-in-One Encoder Kit!


Over 200 encoders in one kit. A flexible platform for development and prototyping, available in distribution for immediate delivery.

LEARN MORE

Features

12-bit absolute (4096) position
Programmable incremental output
High accuracy
SPI communication
Resilient to dust, dirt and oil
Compact design
Low current draw
Modular locking hub design for simple assembly
One Touch Zero™ set
Compatible with AMT Viewpoint™ GUI
-40 to +125°C temperature range

Specifications

Type Description
Select
Input Voltage (Vdc) 4.5 ~ 5.5
Operating Temp. (°C) -40 ~ 125
Speed, Max. (RPM) 8000
Series AMT20
