AMT213B-V
Right-Angle (Axial) Orientation, 14-Bit Single-Turn Resolution, 2 Mbps Data Rate

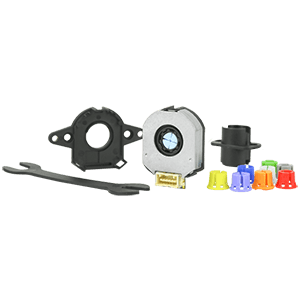

The AMT21-V all-in-one absolute encoder kit offers up to 18 configurations in one package. The kit includes 9 sleeve options ranging from 2 mm to 8 mm, two simple mounting tools, and two baseplates with multiple pre-drilled mounting hole patterns to mate with a wide range of motors. Coupled with the ability to set zero position via RS-485 command or Same Sky’s AMT Viewpoint GUI, the AMT21-V kit provides engineers with a flexible platform in the development process and purchasing managers the ability to greatly reduce SKU count in production.
Features
| 12-bit absolute (4096) position or 14-bit absolute (16384) position |
| Low current draw |
| -40 to +105°C temperature range |
| 18 encoders in one package |
| 9 different shaft sizes from 2 mm to 8 mm |
| Multiple mounting options |
| High accuracy |
| Resilient to dust, dirt and oil |
| Simple assembly |
