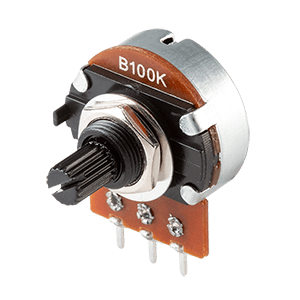

PTN24A-A10020K1PC
24 mm, Horizontal, Reverse Logarithmic, 100 KO, Through Hole, Plastic Knurled Shaft Rotary Potentiometer
Specifications
| Type | Description | |
|---|---|---|
| Potentiometer Type | Rotary |
|
| Size (mm) | 24 |
|
| Termination | Down Facing PC Pins |
|
| Taper | Reverse Logarithmic |
|
| Orientation | Horizontal |
|
| Resistance (kΩ) | 100 |
|
| Shaft Length (mm) | 20 |
|
| Resistance Tolerance (%) | 20 |
|
| Operating Temp Range (°C) | -10 ~ 75 |
|
| Number of Turns | 1 |
|
| Bushing | No Bushing |
|
| Detent | No Detent |
|
| Mounting Type | Through Hole |
|
| Number of Gangs | 1 |
|
| Power (W) | 0.5 |
|
| Rotation (°) | 300 |
|
| Rotor | Shafted |
|
| Shaft Style | Plastic Knurled (18 Teeth) |
|
| Series | PTN24A |
|
