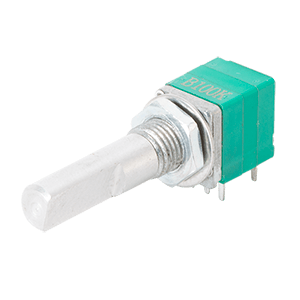

PTN09S1-H50225DB
9.5 mm, Horizontal, Single Section, Linear, 50K, Through Hole, D-cut Shaft Rotary Potentiometer
Specifications
| Type | Description | |
|---|---|---|
| Potentiometer Type | Rotary |
|
| Size (mm) | 9.5 |
|
| Termination | Straight Pc Pins |
|
| Taper | Linear |
|
| Orientation | Horizontal |
|
| Resistance (kΩ) | 1 |
|
| Shaft Length (mm) | 20 |
|
| Resistance Tolerance (%) | 20 |
|
| Operating Temp Range (°C) | -10 ~ 75 |
|
| Number of Turns | 1 |
|
| Bushing | 7 mm |
|
| Detent | No Detent |
|
| Mounting Type | Through Hole |
|
| Number of Gangs | 1 |
|
| Power (W) | 0.05 |
|
| Rotation (°) | 300 |
|
| Shaft Style | Knurled (18 Teeth) |
|
| Series | PTN09SX |
|
