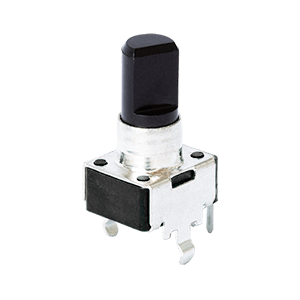

PT01-B115D-B103
10 mm, Horizontal, Linear, 10 kΩ, Through Hole, D-cut Rotary Potentiometer
Specifications
| Type | Description | |
|---|---|---|
| Potentiometer Type | Rotary |
|
| Size (mm) | 10 |
|
| Termination | Side Mount |
|
| Taper | Linear |
|
| Orientation | Horizontal |
|
| Resistance (kΩ) | 10 |
|
| Shaft Length (mm) | 15 |
|
| Resistance Ω | 10 |
|
| Resistance Tolerance (%) | 20 |
|
| Number of Turns | 1 |
|
| Bushing | No Bushing |
|
| Detent | No Detent |
|
| Mounting Type | Through Hole |
|
| Number of Gangs | 1 |
|
| Power (W) | 0.05 |
|
| Rotation (°) | 280 |
|
| Rotor | Shafted |
|
| Shaft Style | D-cut |
|
| Series | PT01 |
|
