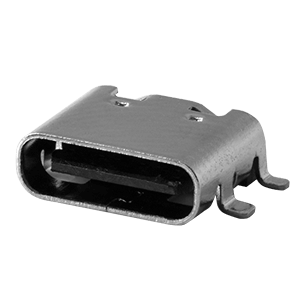

UJC-HP-G-5-SMT-TR
Type C, 20 Vdc, 3 A, Right Angle, Gold Flash, Surface Mount, Black Insulator, Power-Only USB Receptacle
Designed for power-only applications, the UJC-HP-G-5-SMT-TR is a 6-pin USB Type C receptacle housed in a horizontal, surface mount package with a 3 A current rating and 20 Vdc voltage rating. By removing the data transfer pins, this USB Type C receptacle is a more cost-effective solution for designs where charging or power is the sole function. In addition, the UJC-HP-G-5-SMT-TR is compatible with any standard USB Type C plug, taking the accessibility and simplified design integration of the universal Type C connection and applying it to power-only applications.
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| USB Type | Type C |
|
| USB Standard | N/A - Power Only |
|
| Data Transfer Speed | N/A - Power Only |
|
| Mounting Style | Surface Mount |
|
| Orientation | Horizontal |
|
| Voltage Rating | 20 |
|
| Input Type | Vdc |
|
| Current Rating (A) | 3 |
|
| Contact Plating Thickness | Gold Flash |
|
| Color Insulator | Black |
|
