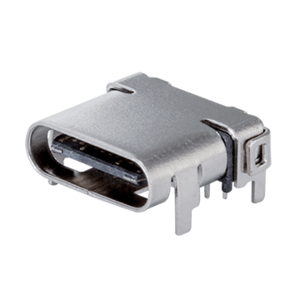

UJ32-C-H-G-SMT-P24-TR
Type C, USB 3.2, 5 Gbps, 20 Vac, 3 A, Horizontal, Gold Flash, Surface Mount, 24 pin, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| USB Type | Type C |
|
| USB Standard | USB 3.2 Gen 1 |
|
| Data Transfer Speed | 5 Gbps |
|
| Mounting Style | Surface Mount |
|
| Orientation | Horizontal |
|
| Voltage Rating | 20 |
|
| Input Type | Vac |
|
| Current Rating (A) | 3 |
|
| Contact Plating Thickness | 3 µin |
|
| Color Insulator | Black |
|
| Series | UJ32 |
|
