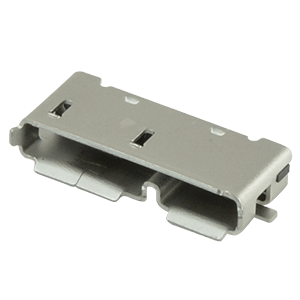

UJ3-MIABH-1-SMT
Micro AB, USB 3.2 Gen 1, 5 Gbps, 30 Vac, 1.8 A, Right Angle, Surface Mount, USB Receptacle
Specifications
| Type | Description | |
|---|---|---|
| Connector Type | Receptacle |
|
| USB Type | Micro AB |
|
| USB Standard | USB 3.2 Gen 1 |
|
| Data Transfer Speed | 5 Gbps |
|
| Mounting Style | Surface Mount |
|
| Orientation | Horizontal |
|
| Voltage Rating | 30 |
|
| Input Type | Vac |
|
| Current Rating (A) | 1.8 |
|
| Contact Plating Thickness | 3 µin (min) |
|
| Color Insulator | Black |
|
